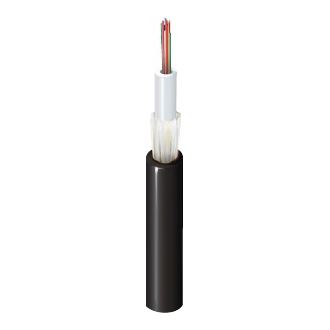

Belden GORN824 Central Loose Tube Fiber Cable Price in London, UK
Back to products
Belden GUSNBF12 Central Loose Tube Fiber Cable Price in London, UK

Belden TF-1C0-006-RX5 Central Loose Tube Fiber Cable Price in London, UK

Factory Grade, Indoor/Outdoor, Central Loose-Tube, OM1, 6 Fibers, Gel Filled Tube 3.8mm, Rodent Protected, Double Jacket, Black, PVC, OFNR, Ozone-UV-Chem Resistant

Compare
Add to wishlist
SKU: TF-1C0-006-RX5 Category:
Description
Product Overview
Product Category Fiber Central Loose Tube Cable
Suitable Applications Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof
Fiber Specifications
Fiber Type OM1
Fiber Core Diameter 62.5/125 µm
Fiber Diameter 250 µm
Fiber Count 6
Fiber Color Coding TIA-598-D
Cable Construction
Number of Active Subunits 1
Fibers Per Subunit 6
Subunit Waterblocking Gel Filled
Subunit Diameter 0.150″ (3.3 mm)
Subunit Color Blue
Inner Jacket Specifications
Strength Member Water blocking Fiberglass Yarns
Material PVC – Polyvinyl Chloride
Nom. Diameter 0.315 in (8.0 mm)
Color Black
Number of Ripcords 1
Outer Jacket Specifications
Strength Member Water blocking Fiberglass Yarns
Jacket Material PVC – Polyvinyl Chloride
Nom. Diameter 0.500 in (12.7 mm)
Number of Ripcords 1
OPTICAL CHARACTERISTICS
Wavelength 850 nm 1300 nm
Max. Attenuation 3.25 dB/km 1.0 dB/km
1 Gigabit Ethernet Performance 300 m 550 m
10 Gigabit Ethernet Performance 33 m –
Min. Restricted Mode Launch 220 MHz.km –
Min. Overfilled Launch (OFL) Bandwidth 200 MHz.km 500 MHz.km
Mechanical Characteristics
Min. Bend Radius During Installation 15x Cable OD
Min. Bend Radius During Operation 10x Cable OD
Max. Tensile Strength During Installation 2670 N (600 lbf)
Max. Tensile Strength During Operation 800 N (180 lbf)
Crush Resistance 220 N/cm
Bulk Cable Weight 103 lbs/kft (153 kg/km)
Temperature Range
Installation Temperature Range -10°C to +60°C
Operating Temperature Range -40°C to +70°C
Storage Temperature Range -40°C to +70°C
Standards and Compliance
Environmental Suitability Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability CA Prop 65
Flammability / Reaction to Fire OFNR, FT4
ICEA Compliance S-104-696
