FG-1101E Specification |
|
| Interfaces and Modules | |
| Hardware Accelerated 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 2x 480 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 12.5 Gbps |
| NGFW Throughput 2, 4 | 9.8 Gbps |
| Threat Protection Throughput 2, 5 | 7.11 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 45 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 45 Gbps |
| Firewall Latency (64 byte, UDP) | 2.76 μs |
| Firewall Throughput (Packet per Second) | 67.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte)Â 1Â | 48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS)Â 3 | 10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)Â 3Â | 6,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)Â 3 | 780,000 |
| Application Control Throughput (HTTP 64K)Â 2 | 26 Gbps |
| CAPWAP Throughput (HTTP 64K) | 43 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 3.5 x 17.44 x 17.62 |
| Height x Width x Length (mm) | 88.9 x 443 x 447.4 |
| Weight | 25.4 lbs (11.55 kg) |
| Form Factor (supports EIA/ non-EIA standards | Rack Mount, 2 RU |
| AC Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 222 W / 346 W |
| AC Current (Maximum) | 6A@120V, 3A@240V |
| Heat Dissipation | 1,181 BTU/h |
| DC Power Input (FG-1100E-DC) | — |
| DC Current (Maximum) | — |
| Redundant Power Supplies | Yes, Hot swappable |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 66.7 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |

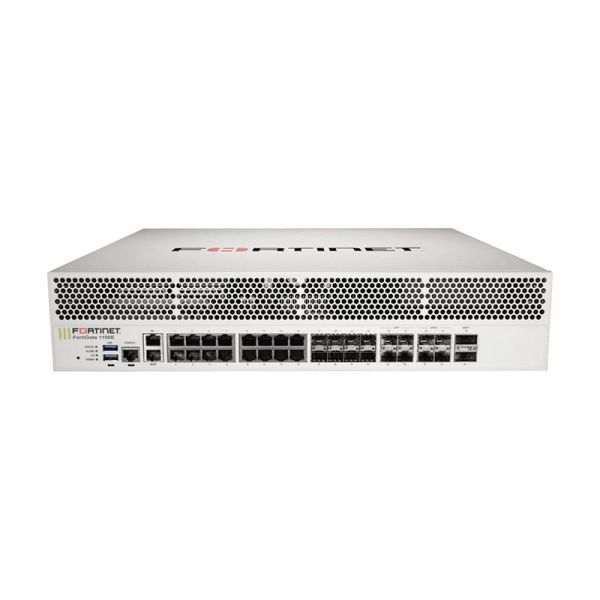

Fortinet FG-1101E Firewall Price in London, UK
The FortiGate 1100E series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network performance. Fortinet’s Security-Driven Networking approach provides tight network integration to the new security generation.
