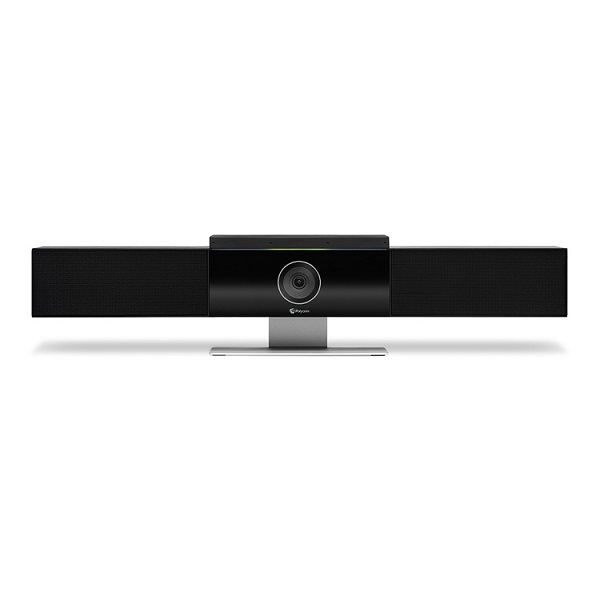

Polycom Studio Technical Specifications
Dimensions
- Dimensions: 105mm x 700mm x 70mm = 4.2” x 27.3” x 2.8” (HxWxD) without stand
- Dimensions: 56mm x 700 mm x 70mm = 6.2” x 27.3” x 2.8” (HxWxD) with stand
- Weight: 5lbs 2.6oz (2342g) without stand
- Weight: 6lbs 4.7oz (2856g) with stand
- Remote control dimensions: 183mm x 40mm x 19mm = 7.2” x 1.6” x .75” (HxWxD)
Application Requirements
- Supported operating systems: Windows 7, 8.1, 10, MacOS 10.12, 10.13, 10.14
- Support for standard audio and video device drivers: UAC 1.0 Audio, UVC 1.1/1.5 Video, HID 1.11
Power Requirements
- 12VDC/5A @ 100~240VAC, 50/60 Hz
Package Includes
- Polycom Studio
- Remote control with 2 AAA batteries
- Power adapter
- 5m USB 2.0 cable (Type-C to Type-A)
- Wall mount kit
- Setup sheet
Optional accessories
- Expansion microphone
- Display mount
Camera
- 120-degree FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing & speaker tracking
- 5x zoom / EPTZ
- 2 camera presets
Audio
- Polycom Acoustic Clarity technology for full-duplex conversations, acoustic echo cancellation and background noise suppression
- Polycom NoiseBlock technology
- Polycom Acoustic Fence technology
- Mute/unmute controls
- Stereo microphones:
- 6-element beamforming microphone array
- 12ft pickup range
- 120Hz–16kHz frequency response
- 6-element beamforming microphone array
- 12ft pickup range
- 120Hz–16kHz frequency response
Interfaces
- 1x USB 3.0 Type-C port (with 2.0 compatibility)
- Power connector
- Optional external microphone
- 3.5mm stereo Audio In
- Kensington security lock
- 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible
- Bluetooth 4.2
Application Compatibility
- Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
- Microsoft Skype for Business
- Microsoft Skype
- Microsoft Teams
- Zoom
- LogMeIn GoToMeeting
- BlueJeans Network
- Google Hangouts™ communication platform
- Amazon Chime
- Cisco Webex
- VidyoDesktop
- Polycom RealPresence Desktop
Manageability (via Wi-Fi)
- Polycom Companion App (running on Win/Mac PC connected to device)
- Polycom RealPresence Resource Manager
- Polycom Device Management Service
Warranty Information
- 1-year limited hardware warranty
Country of origin
- Laos
Environmental
- Operating temperature: 32–104°F (0–40°C)
- Relative humidity: 5–95%, noncondensing
- Storage temperature: -13–160°F (-25°–70°C)
