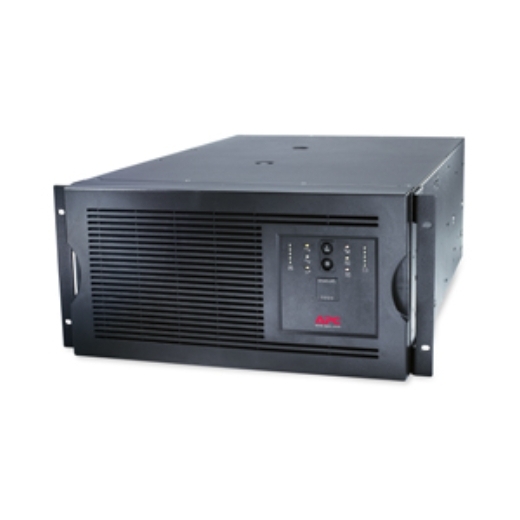

Product Description
Technical Specifications
Output
Max Configurable Power (Watts)
4.0kWatts / 5.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
96.0 %
Output Voltage Distortion
Less than 5 % at full load
Output Frequency (sync to mains)
47 – 53 Hz For 50 Hz nominal Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
2 ms typical : 4 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 – 302 Adjustable, 160 – 286V
Efficiency at Full Load
96.0 %
Batteries & Runtime
Battery type
VRLA
Typical recharge time
3hour(s)
Replacement Battery
RBC55
Expected Battery Life (years)
3 – 5
RBC Quantity
2
Battery Charge Power (Watts)
542 Watts
Runtime
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm
Audible and visible alarms : configurable delays
Surge Protection and Filtering
Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
8.74inches (222MM, 22.2CM)
Maximum Width
19.02inches (483MM, 48.3CM)
Maximum Depth
25.98inches (660MM, 66.0CM)
Net Weight
215.46lbs. (97.73KG)
Shipping weight
235.5lbs. (106.82KG)
Shipping Height
25.0inches (635MM, 63.5CM)
Shipping Width
24.02inches (610MM, 61.0CM)
Shipping Depth
30.0inches (762MM, 76.2CM)
Color
Black
Master Carton Units
1.0
Units per Pallet
4.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 10000ft (0 – 3048meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 50000ft (0 – 15240meters)
Audible noise at 1 meter from surface of unit
53.0dBA
Online thermal dissipation
430.0BTU/hr
Conformance
Approvals
C-Tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
