901-H320-WW00 Specification |
|
|
Minimum Rx Sensitivity |
• Up to -99dBm |
|
Beamflex Sinr Tx Gain |
• 2dB |
|
Beamflex Sinr Rx Gain |
• 3-5dB (PD-MRC) |
|
Interference Mitigation |
• 5dB |
|
Concurrent users |
• 100 per AP |
|
Voice Calls |
• 30 |
|
BSSID |
• 8 BSSIDs per radio |
|
802.11e/WMM |
• Supported |
|
Software Queues |
• Per traffic type (4), per client |
|
Traffic Classification |
• Automatic, heuristics and TOS based or VLAN-defined |
|
Rate Limiting |
• Dynamic, per-user or per-WLAN |
|
IP |
• IPv4, IPv6, dual-stack |
|
VLANs |
• 802.1Q (1 per BSSID or dynamic, per user based on RADIUS) • Port-based |
|
802.1X For Ethernet Ports
|
• Authenticator • Supplicant |
|
Deployment Options |
• Standalone (individually managed) • Managed by ZoneDirector • Managed by SmartZone • Managed by FlexMaster |
|
Configuration |
• Web User Interface (HTTP/S) • CLI (Telnet/SSH), SNMP v1, 2, 3 |
|
Standards |
• IEEE 802.11a/b/g/n/ac |
|
MIMO Configuration
|
2.4GHz • 1×1 : 1 SU-MIMO 5GHz • 2×2 : 2 SU-MIMO • 2×2 : 2 MU-MIMO |
|
Supported Data Rates
|
• 802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz) • 13.5Mbps – 400Mbps (40MHz) • 29.3Mbps – 867Mbps (80MHz) • 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps • 802.11b: 11, 5.5, 2 and 1 Mbps • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps |
|
Rf Power Output (Aggregate)
|
• 2.4GHz: 16dBm • 5.0GHz: 20dBm |
|
Channelization |
• 20MHz, 40MHz, 80MHz |
|
Frequency Band
|
• IEEE 802.11 b/g/n: 2.4 – 2.484GHz • IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35GHz; 5.47 – 5.725 GHz; 5.725 – 5.85GHz |
|
Operating Channels
|
• 2.4GHz : 1-13 • 5GHz : 36-64, 100-140, 149-165 • Channel availability is country dependent according to the local regulations |
|
Wireless Security
|
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i • Authentication via 802.1X with ZoneDirector, SmartZ-one, local authentication database, support for RADIUS, LDAP, and Active Directory |
| Power | • POE 802.3af |
| Physical Size | • 89mm (L) x 136mm (W) x 29mm (H) |
|
Physical Ports |
• 2 x 10/100 Mbps Base-T 802.3, 802.3u, RJ-45 Ethernet access ports. • 1 x 1GbE 802.3, 802.3u, 802.3ab, 802.3af PoE input, RJ-45 |
|
Mounting Options |
• Electrical wallbox; Standard US and EU single gang wall jack • Optional bracket for offset & wall mount |
|
Environmental Conditions |
• Operating Temperature: 0°C (32°F) – 40°C (104°F) • Operating Humidity: 15% – 95% non-condensing |
|
Power Draw |
• Idle: 3W • Typical: 4W • Peak: 6W |

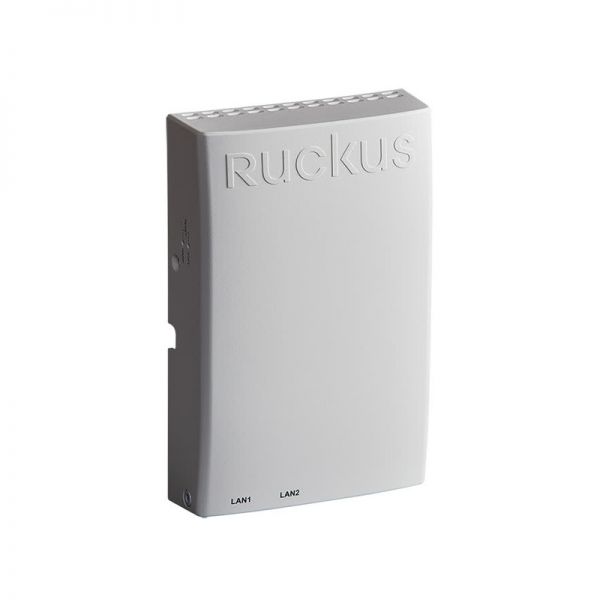

Ruckus 901-H320-WW00 Access Point Price in London, UK
ZoneFlex 802.11ac Wave 2 multi-user MU-MIMO, supports dual-band 2.4 GHz (1×1:1) & 5 GHz (2×2:2), built-in BeamFlex+ world, 1 uplink 10/100/1000 interface and 2 10/100 Ethernet access interface, POE Gigabit input. Power adapter is not included.
